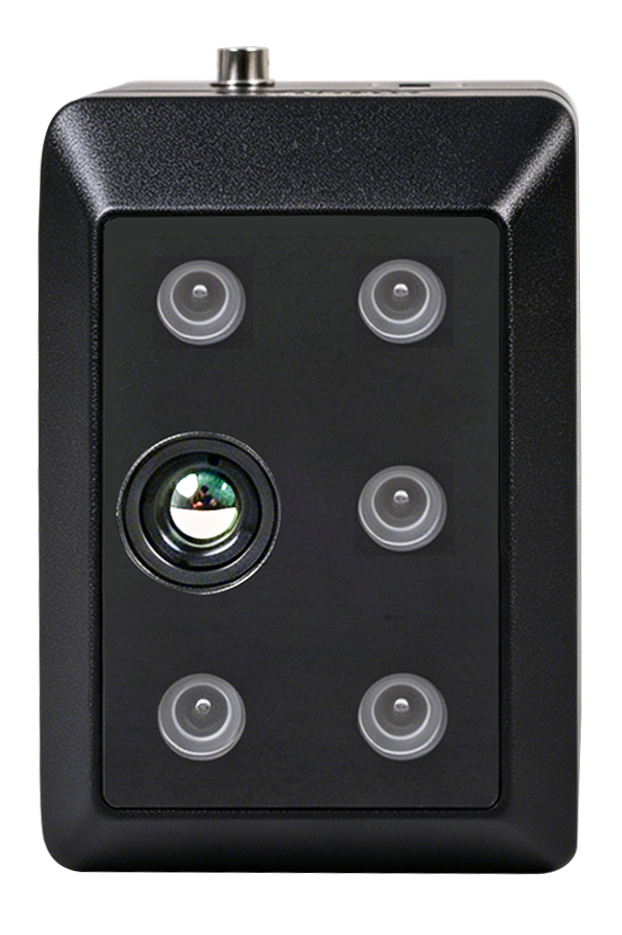

FigSpec® FS‑620E Multimodal Multispectral Camera | Multispectral + RGB + Long-Wave Infrared All-in-One Camera

FigSpec® Multispectral Cameras – Three main models covering all scenarios with 4–6 chan-nels, featuring spectral + RGB + thermal infrared multi-configuration options.

Four Core Advantages

19 customizable wavelengths | Independent selection within 400nm–1000nm band

Dual red edge as standard | Innovative vegetation-sensitive dual red edge bands for more accurate agricultural remote sensing (720nm & 840nm)

Multi-channel, zero-lag synchronous imaging | No imaging time difference

Multi-modal integrated fusion | Capture 3D data in a single shot: multispectral + RGB+long-wave infrared

Parameters

Product Model	FS-620E
Configuration	4-channel multispectral + 1RGB +1-channel thermal infrared (LWIR)
Target Surface Size	Multispectral:1/2″; RGB: 1/3”
Effective pixels	Multispectral:1.3Mpx；RGB:0.8Mpx；LWIR:0.3Mpx
Shutter type	Multispectral: Global; RGB: Rolling Shutter
Quantization Bit Depth	Multispectral:12bit；RGB:8bit；LWIR:8bit
Field of view	Multispectral:54.2°×44.5°；RGB：49.1°×40.5°
Ground resolution	Multispectral:9.6cm@h120m；RGB:2.86cm@h120m
Coverage Width	Multispectral:123m×98m@h120m；RGB:109m×88m@h120m
Spectral channe[1]	555nm@27nm, 660nm@22nm,720nm@10nm, 840nm@30nm, RGB；LWIR：8μm~14μm
Optical Window	Sapphire optical glass window
Main Unit Dimensions	127mmx80mmx88mm
Main Unit Weight	≤590g
Mounting interface	Provides mounting threaded holes
Power Supply	24V/2.5A
Power comsumption	≤36W(Peak)
Image format	Multispectral: 16-bit raw TIFF; RGB:8bit JPEG；LWIR:8bit JPEG
Storage Media	Comes standard with 128GB SD card
Processing software	FigSpec MS-PreMerge，FigSpec Studio
Communication Interface	Gigabit Ethernet
Capture Trigger	Timed trigger, API trigger
Capture Frequency	Maximum 10Hz
Operating AmbientTemperature	0°C to +45°C (no wind)
storage temperature	-30℃~+70℃
Environmental Humidity	RH(%) ≤ 85% (non-condensing)

[1] Standard wavelengths, with customization available from the following 19 wavelengths (consult sales for configuration options and pricing): panchromatic, 410nm@35nm, 450nm@30nm, 490nm@25nm, 530nm@27nm, 555nm@27nm, 570nm@32nm, 610nm@30nm, 650nm@27nm, 660nm@22nm, 680nm@25nm, 720nm@10nm, 720nm@15nm (long-pass), 750nm@10nm, 780nm@13nm, 800nm@35nm, 840nm@30nm, 900nm@35nm, 940nm@30nm (tolerance ±5nm).
