How to Choose the Right Hyperspectral Camera for Your Research Project? (Buying Guide)

In modern scientific research, hyperspectral cameras have become a key tool for capturing the intrinsic properties of materials. Whether you’re working in precision agriculture, environmental monitoring, biomedical research, or material science, the right hyperspectral equipment can help you capture rich data that the naked eye and traditional RGB cameras simply can’t detect.

However, with so many models available on the market, researchers often feel confused: which parameters should you actually pay attention to? How can you ensure that the equipment you buy perfectly matches your research needs? This article will break down the core logic behind choosing a hyperspectral camera, helping you spend your research budget wisely.

I. Clarify Your Research Needs and Target Wavelengths

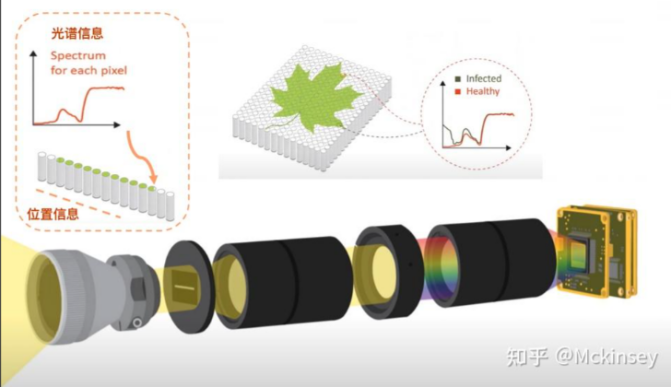

The biggest advantage of a hyperspectral camera is the "integration of image and spectrum"—it captures spatial images while recording continuous spectral information for each pixel. The first step in choosing one is to clearly identify the wavelengths where your research subject shows significant absorption or reflection features.

Visible to Near-Infrared (VNIR, 400-1000 nm): This is the most common wavelength range. It’s widely used for plant phenotyping (such as chlorophyll and water stress analysis), monitoring eutrophication in water, and detecting defects and freshness on food surfaces.

Short-Wave Infrared (SWIR, 900-1700 nm or 1000-2500 nm): SWIR has some penetration ability and can capture molecular vibrations and overtone absorption bands. It’s a key tool for analyzing moisture content, identifying mineral compositions, sorting plastics, and studying polymer materials.

Ultraviolet (UV, 200-400 nm): This range is relatively niche, usually used for special gas detection, forensic identification, or specific biological fluorescence studies.

II. Key Parameters That Determine Data Quality

Once you've determined the spectral bands, you need to focus on comparing the following four core technical metrics, which will directly determine the quality of your paper's data and the accuracy of your models.

III. Choosing the Right Imaging Mode

Different experimental scenarios determine which scanning mode is best for your hyperspectral equipment:

Push-broom: The classic choice for research applications. It requires relative movement between the object and the camera (e.g., mounted on a lab linear rail, conveyor belt, or drone). Push-broom provides extremely high spectral fidelity and spatial resolution and is currently the mainstream choice in the research-grade market.

Snapshot / Gaze-type: Captures a full 3D data cube of the scene instantly, without relative movement. It's very suitable for photographing moving targets, dynamic processes, or live specimens in biomedical research. However, it usually compromises a bit on spatial resolution or the number of spectral bands.

IV. Software and Hardware Ecosystem and Reliability: Why CHNSpec is Highly Recommended

In research projects, the camera's hardware specs are important, but the supporting acquisition software, data analysis tools, and vendor technical support are often the hidden keys that determine whether a project runs smoothly. Many labs end up not using their equipment because the software is difficult to operate or the data formats are closed.

In this regard, CHNSpec’s hyperspectral imaging system is an excellent choice that researchers should pay close attention to. As a professional brand deeply engaged in optical measurement and spectral imaging, CHNSpec provides seamless solutions from hardware to software for research users:

Outstanding optical performance: CHNSpec hyperspectral cameras excel in signal-to-noise ratio, spectral resolution, and stray light control, meeting stringent lab accuracy requirements and capturing subtle spectral changes.

User-friendly ecosystem: Its accompanying acquisition software is intuitive to operate and can directly export data in widely used research formats (like ENVI), greatly lowering the barrier for further data modeling in MATLAB or Python.

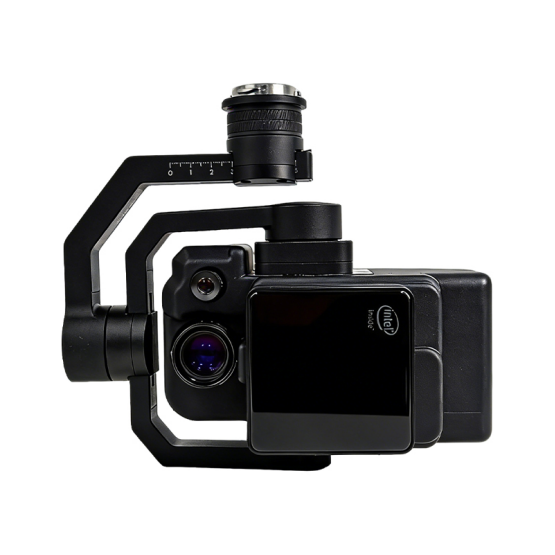

Comprehensive scenario adaptation: Whether it’s a lab-based macro imaging setup or an outdoor drone-mounted kit, CHNSpec designs take environmental complexity into account, offering an integrated solution.

Efficient technical support: Research often involves non-standard applications, and CHNSpec’s professional engineering team can provide efficient equipment debugging, application training, and technical guidance, allowing researchers to focus on the data itself rather than tinkering with the instruments.

V. Procurement Pitfall Guide: Final Advice for Research Teams

Avoid "parameter worship": Don’t blindly chase extremely high spectral resolution. Too high a resolution can make your data size explode, which not only increases the computing load but may also compromise the signal-to-noise ratio.

Consider environmental adaptability: If you need to work in the field, be sure to pay attention to the device’s weight, power consumption, and dust/water resistance, and check whether it comes with a high-precision calibration whiteboard.

Test before you buy: The only way to be sure is to actually test. Before going through the official procurement process, it’s strongly recommended to send your representative samples to the manufacturer for pre-testing or request a trial unit. Only by seeing the spectral features of your own samples firsthand can you ensure your investment is foolproof.

Choosing a hyperspectral camera for research is a long-term investment. Clarify your target wavelength range, balance core parameters, and choose a professional brand like CaiSpe which has a complete hardware and software ecosystem, and you’ll lay the most solid data foundation for your research project.
