FigSpec® FS-500E Ground Version Multispectral Camera | 4-Channel Multispectral + RGB Remote Sensing Camera

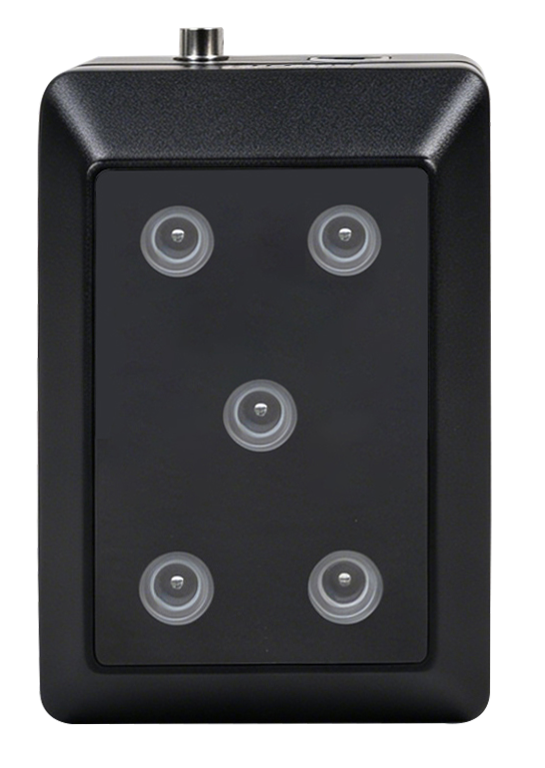

FigSpec® FS-500E Ground Version Multispectral Camera | 4-Channel Multispectral + RGB Remote Sensing Camera
The FS‑500E is the FigSpec® ground version multispectral camera, with 4 multispectral channels plus an RGB visible light channel. It comes standard with dual red-edge vegetation-sensitive bands at 720nm and 840nm. Within the 400‑1000nm range, it supports 19 customizable wavelength groups, with zero-delay multi-channel synchronized imaging. The lightweight body is ≤490g, making it perfect for precision agriculture remote sensing, vegetation growth monitoring, ecological surveys, and other research and engineering tasks. At a flight height of 120m, the multispectral ground resolution is 9.6cm, and it comes with professional spectral processing software that outputs 16-bit raw TIFF multispectral data.
$0.00
DetailSupports
Product Series Overview
Four Core Advantages
19 customizable wavelengths | Independent selection within 400nm–1000nm band
Dual red edge as standard | Innovative vegetation-sensitive dual red edge bands for more accurate agricultural remote sensing (720nm & 840nm)
Multi-channel, zero-lag synchronous imaging | No imaging time difference
Multi-modal integrated fusion | Capture 3D data in a single shot: multispectral + RGB+long-wave infrared
Parameters
Product Model | FS-500E |
Configuration | 4-channel multispectral + 1 RGB |
Target Surface Size | Multispectral: 1/2″; RGB: 1/3″ |
Effective pixels | Multispectral:1.3Mpx; RGB:0.8Mpx |
Shutter type | Multispectral: Global; RGB: Rolling |
Quantization Bit Depth | Multispectral:12bit; RGB:8bit |
Field of view | Multispectral: 54.2°×44.5° ;RGB：49.1°×40.5° |
Ground resolution | Multispectral:9.6cm@h120m;RGB:2.86cm@h120m |
Coverage Width | Multispectral: 123m×98m@h120m;RGB：109m×88m@h120m |
Spectral channe[1] | 555nm@27nm, 660nm@22nm,720nm@10nm,840nm@30nm,RGB |
Optical Window | Sapphire optical glass window |
Main Unit Dimensions | 127mmx80mmx88mm |
Main Unit Weight | ≤490g |
Mounting interface | Provides mounting threaded holes |
Power by | 24V/2.5A |
Power comsumption | ≤36W(Peak) |
Image format | Multispectral: 16-bit raw TIFF; RGB: 8-bit JPEG |
Storage Media | Comes standard with 128GB SD card |
Processing software | FigSpec MS-PreMerge，FigSpec Studio |
Communication Interface | Gigabit Ethernet |
Capture Trigger | Timed trigger, API trigger |
Capture Frequency | Maximum 10Hz |
Operating AmbientTemperature | 0°C to +45°C (no wind) |
storage temperature | -30℃~+70℃ |
Environmental Humidity | RH(%)≤85%(non-condensing) |
[1] Standard wavelengths, with customization available from the following 19 wavelengths (consult sales for configuration options and pricing): panchromatic, 410nm@35nm, 450nm@30nm, 490nm@25nm, 530nm@27nm, 555nm@27nm, 570nm@32nm, 610nm@30nm, 650nm@27nm, 660nm@22nm, 680nm@25nm, 720nm@10nm, 720nm@15nm (long-pass), 750nm@10nm, 780nm@13nm, 800nm@35nm, 840nm@30nm, 900nm@35nm, 940nm@30nm (tolerance ±5nm).
