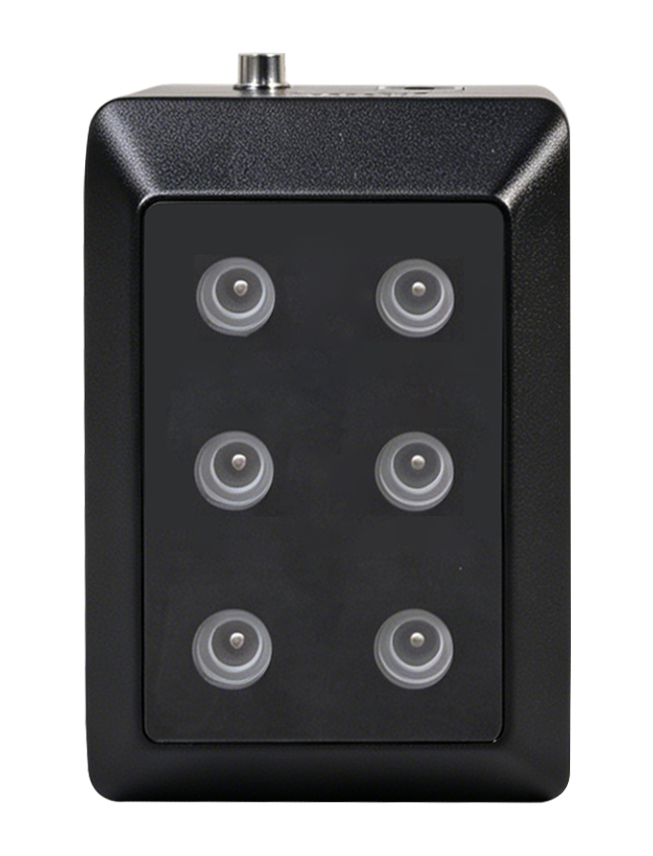

FigSpec® FS‑600E Ground Version Multispectral Camera｜6-Channel Research-Grade Multispectral Imaging Device

FigSpec® Multispectral Cameras – Three main models covering all scenarios with 4–6 chan-nels, featuring spectral + RGB + thermal infrared multi-configuration options.

Four Core Advantages

19 customizable wavelengths | Independent selection within 400nm–1000nm band

Dual red edge as standard | Innovative vegetation-sensitive dual red edge bands for more accurate agricultural remote sensing (720nm & 840nm)

Multi-channel, zero-lag synchronous imaging | No imaging time difference

Multi-modal integrated fusion | Capture 3D data in a single shot: multispectral + RGB+long-wave infrared

Parameters

Product Model	FS-600E
Configuration	6-channel multispectral
Target Surface Size	1/2”
Effective pixels	1.3Mpx
Shutter type	Global
Quantization Bit Depth	12bit
Field of view	54.2°×44.5
Ground resolution	9.6cm@h120m
Coverage Width	123m×98m@h120m
Spectral channe[1]	450nm@30nm,555nm@27nm, 660nm@22nm,720nm@10nm,750nm@10nm, 840nm@30nm
Optical Window	Sapphire optical glass window
Main Unit Dimensions	127mmx80mmx88mm
Main Unit Weight	≤530g
Mounting interface	Provides mounting threaded holes
Power Supply	24V/2.5A
Power comsumption	≤36W(Peak)
Image format	16-bit raw TIFF
Storage Media	Comes standard with 128GB SD card
Processing software	FigSpec MS-PreMerge，FigSpec Studio
Communication Interface	Gigabit Ethernet
Capture Trigger	Timed trigger, API trigger
Capture Frequency	Maximum 10Hz
Operating AmbientTemperature	0°C to +45°C (no wind)
storage temperature	-30℃~+70℃
Environmental Humidity	RH(%) ≤ 85% (non-condensing)

[1] Standard wavelengths, with customization available from the following 19 wavelengths (consult sales for configuration options and pricing): panchromatic, 410nm@35nm, 450nm@30nm, 490nm@25nm, 530nm@27nm, 555nm@27nm, 570nm@32nm, 610nm@30nm, 650nm@27nm, 660nm@22nm, 680nm@25nm, 720nm@10nm, 720nm@15nm (long-pass), 750nm@10nm, 780nm@13nm, 800nm@35nm, 840nm@30nm, 900nm@35nm, 940nm@30nm (tolerance ±5nm).
