FS‑13‑SC Line‑Scan Hyperspectral Camera | 2.5nm Resolution VNIR Imager for Industrial Sorting

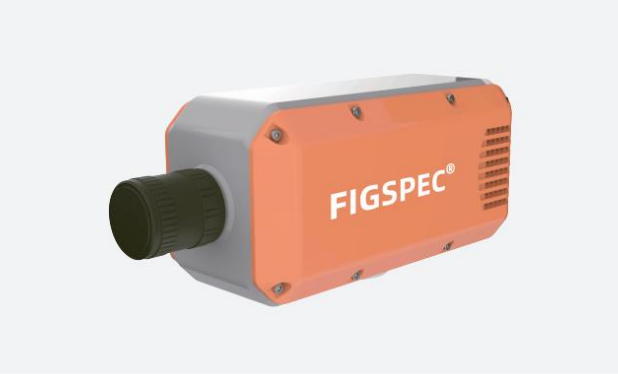

The CHNSpec FS-13-SC line-scan hyperspectral camera is a high-performance inspectiondevice with independent intellectual property. Using grating spectroscopy technology, it covers aspectral range of 400-1000nm, comes with 1024 spectral channels, and has a high spectralresolution of 2.5nm to accurately capture subtle spectral differences. The camera is equipped withan SCMOS detector, 2048 spatial pixels, a high signal-to-noise ratio of 600:1, and 60% transmissionefficiency, ensuring clear imaging and reliable data. It can shoot up to 81fps and features USB3.0high-speed transfer and a C-Mount interface, making it easy and efficient to use. The devicemeasures 22cm × 11cm × 9.5cm and consumes only 5W, making it compact and energy-saving. This camera is widely used in the inspection of printed materials, textiles, pharmaceuticalcomponents, sorting of fruits and vegetables, and screen testing, providing strong support for variousprecise inspection needs.

• Spectral range: 400-1000nm

• Spectral resolution better than 2.5nm

• Grating spectrometry

• The imaging speed can reach 81 fps

• The spectral channels can reach up to 1024

• The detector uses SCMOS

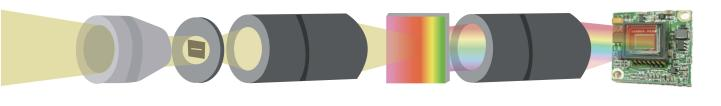

Measurement principle

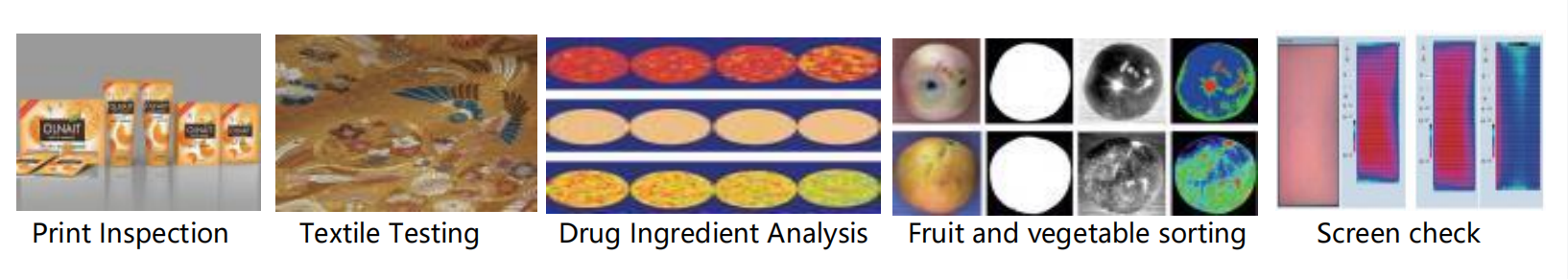

Typical applications

Technical Specs
