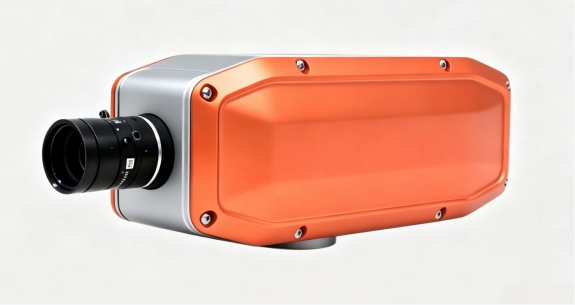

FS‑13‑H Line‑Scan Hyperspectral Camera | High‑Pixel VNIR Imager for Industrial In‑line Inspection

The CHNSpec FS-13-H line-scan hyperspectral camera is a high-performance testing devicewith proprietary technology. Using grating spectroscopy, it covers a spectral range of 400-1000nm, comes with 1984 spectral channels, and offers a high spectral resolution of 2.5nm, allowing it tocapture even subtle spectral differences. Equipped with a CMOS detector, it has 4096 spatial pixels, a high signal-to-noise ratio of 600:1, and 60% transmission efficiency, ensuring clear imaging andreliable data. The camera can shoot at speeds up to 31fps and supports fast USB3.0 transfer alongwith a C-Mount interface, making it easy and efficient to use. It consumes only 5W of power, makingit compact and energy-saving. This camera is widely used in fields like printed material inspection,textile testing, pharmaceutical component analysis, fruit and vegetable sorting, and screen inspection, providing strong support for various precise testing needs.

• Spectral range: 400-1000nm

• Spectral resolution better than 2.5nm

• Grating spectrometry

• The spatial resolution goes up to 4096

• The spectral channels can reach up to 1984

• The detector uses SCMOS

Measurement principle

Typical applications

Technical Specs
