CHNSpec Technology's CS-380 SE is a three-angle gloss meter, capable of measuring at 20°, 60° and 85°. It adopts dual optical path technology with a repeatability accuracy of 0.2GU, ensuring precise data. A single charge of its lithium battery supports 100,000 measurements. The device can store 5,000 pieces of data, and its 320*240 color screen displays clearly, suitable for gloss detection in various industries and scenarios.
$229.00
DetailSupports

1、 Product features

  • Lithium ion battery charging saves users on usage costs while ensuring an ultra long battery life of 100000 times

  • A single machine can store 5000 pieces of data, solving the problem of user data storage



屏幕截图 2025-08-26 100247.png


  • Adopting a 320 * 240 color screen, the data display is clear at a glance


屏幕截图 2025-08-26 100559.png


  • Standard QC software, data can be stored on the computer and reports can be exported


屏幕截图 2025-08-26 100711.png


  • Adopting a universal Type-C interface to reduce user procurement costs




  • Meets the requirements of JJG 696-2015 glossmeter for more accurate data


屏幕截图 2025-08-26 100818.png


2、 Product diagram





3、 Technical parameter

Model

CS-380 SE

Measuring   Angle

20°、60°、85°

Measuring light spots(mm)

20°:10*10；60°:9*15；85°:5*38

Measuring range

20°:0-200GU;60°:0-200GU;

85°:0-100GU

Display resolution

0-100:0.1GU;大于100:1GU

Measurement

repeatability accuracy

0-100GU:0.2GU；100-200GU:0.2%GU

Measurement mode

Simple mode and statistical mode

Measurement accuracy

Meet the requirements of JJG   696-2015

Measurement time

＜1.5s

Data storage

5000 pieces of data

Volume

165*51*77mm(L*W*H)

Weight

400g

Language

Chinese，English

Battery capacity

3000mAh   lithium battery

Electricity   level※※

Fully charged, can be used 60000 times

Interface

Type-C

Screen size

2.4 inches（Screen resolution320*240）

Computer software

Yes

Working temperature

0-40℃

Working humidity

Less than 85%, no condensation

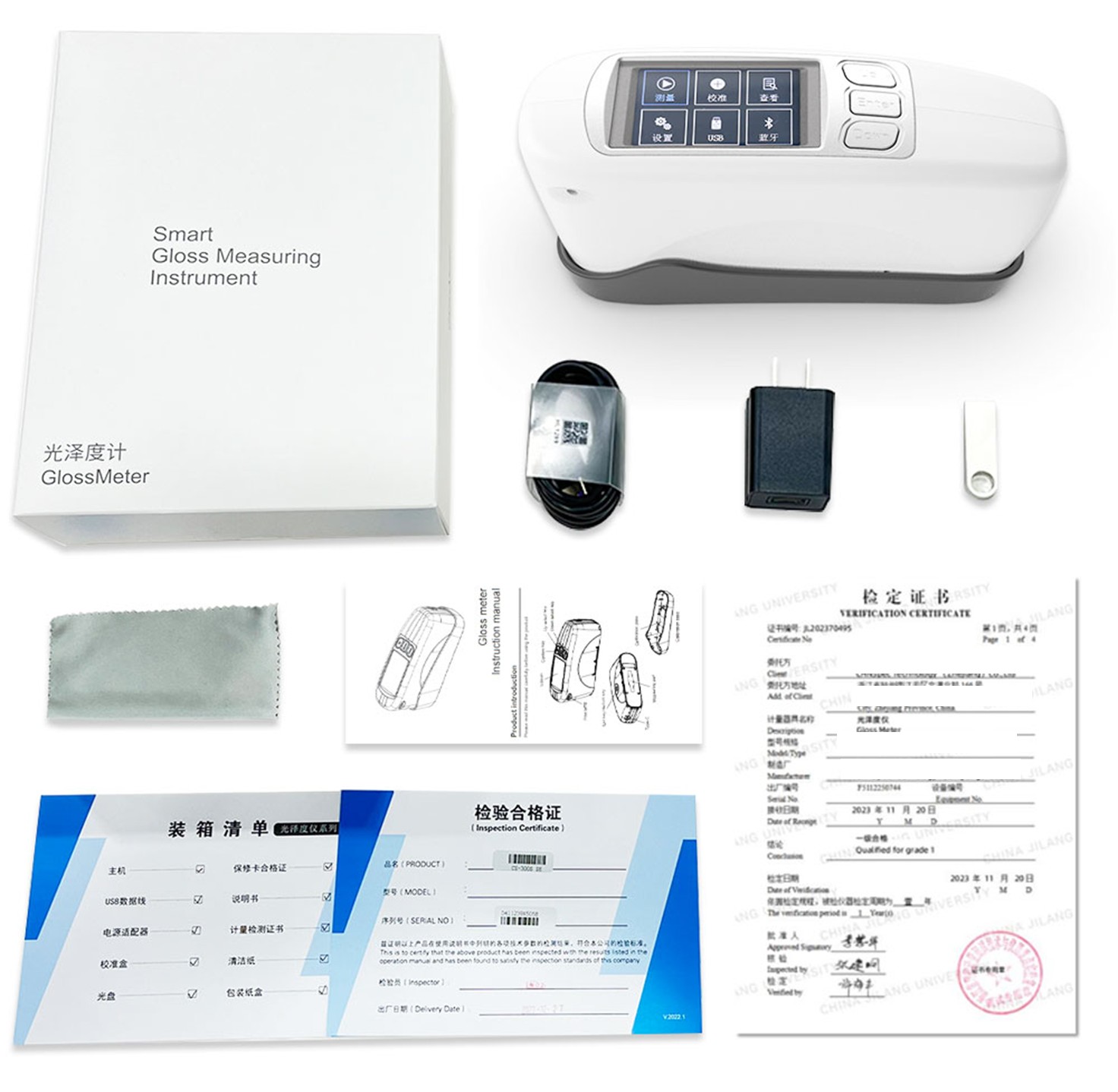

Accessory

5V/2A charging head, data cable,   manual, USB flash drive (upper computer software), calibration standard   board, third-party calibration certificate

Purpose

Paint and ink, coatings,   electroplating, plastic electronics, hardware and other fields

※ Measure the standard deviation 30 times continuously, andevaluate it with absolute value when the measurement value is less than 100GU;When the measured value is greater than 100GU, evaluate it as a percentage

※※ Before the instrument leaves the factory, the measurementdata from the color spectrum standard laboratory
