CHNSpec Technology CS-300S SE Micro-pore Gloss Meter, with a measurement angle of 60° and a measurement aperture of 23mm, can accurately detect the gloss of small areas. It uses dual-light path technology, with a repeatability accuracy of 0.2GU. Powered by a lithium battery, one charge can complete 100,000 measurements. The single unit can store 5,000 data entries, and is equipped with a 320×240 large color screen, suitable for gloss detection of small components in multiple industries.
$257.00
DetailSupports

1.Product features

  • Lithium ion battery charging saves users on usage costs while ensuring an ultra long battery life of 100000 times

  • A single machine can store 5000 pieces of data, solving the problem of user data storage


屏幕截图 2025-08-26 100247.png


  • Adopting a 320 * 240 color screen, the data display is clear at a glance


屏幕截图 2025-08-26 100559.png


  • Standard QC software, data can be stored on the computer and reports can be exported

屏幕截图 2025-08-26 100711.png


  • Adopting a universal Type-C interface to reduce user procurement costs

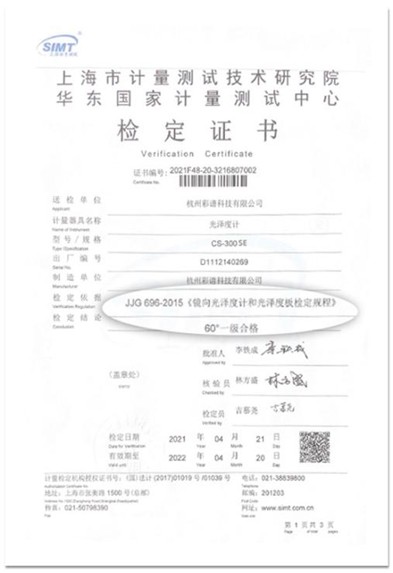

  • Meets the requirements of JJG 696-2015 glossmeter for more accurate data




2.Product diagram




3.Technical parameter

Model

CS-300S SE

Measuring   Angle

60°

Measuring light spots(mm)

60°:2*3

Measuring range

60°:0-200GU

Display resolution

0-100:0.1GU;大于100:1GU

Measurement

repeatability accuracy

0-100GU:0.2GU；100-200GU:0.2%GU

Measurement mode

Simple mode and statistical mode

Measurement

accuracy

Meet the requirements of JJG   696-2015

Measurement time

＜1s

Data storage

5000 pieces of data

Volume

165*51*77mm(L*W*H)

Weight

400g

Language

Chinese，English

Battery capacity

3000mAh   lithium battery

Electricity   level

Fully charged, can be used 100000   times

Interface

Type-C

Screen size

2.4 inches（Screen resolution320*240）

Computer software

Yes

Working temperature

0-40℃

Working humidity

Less than 85%, no condensation

Accessory

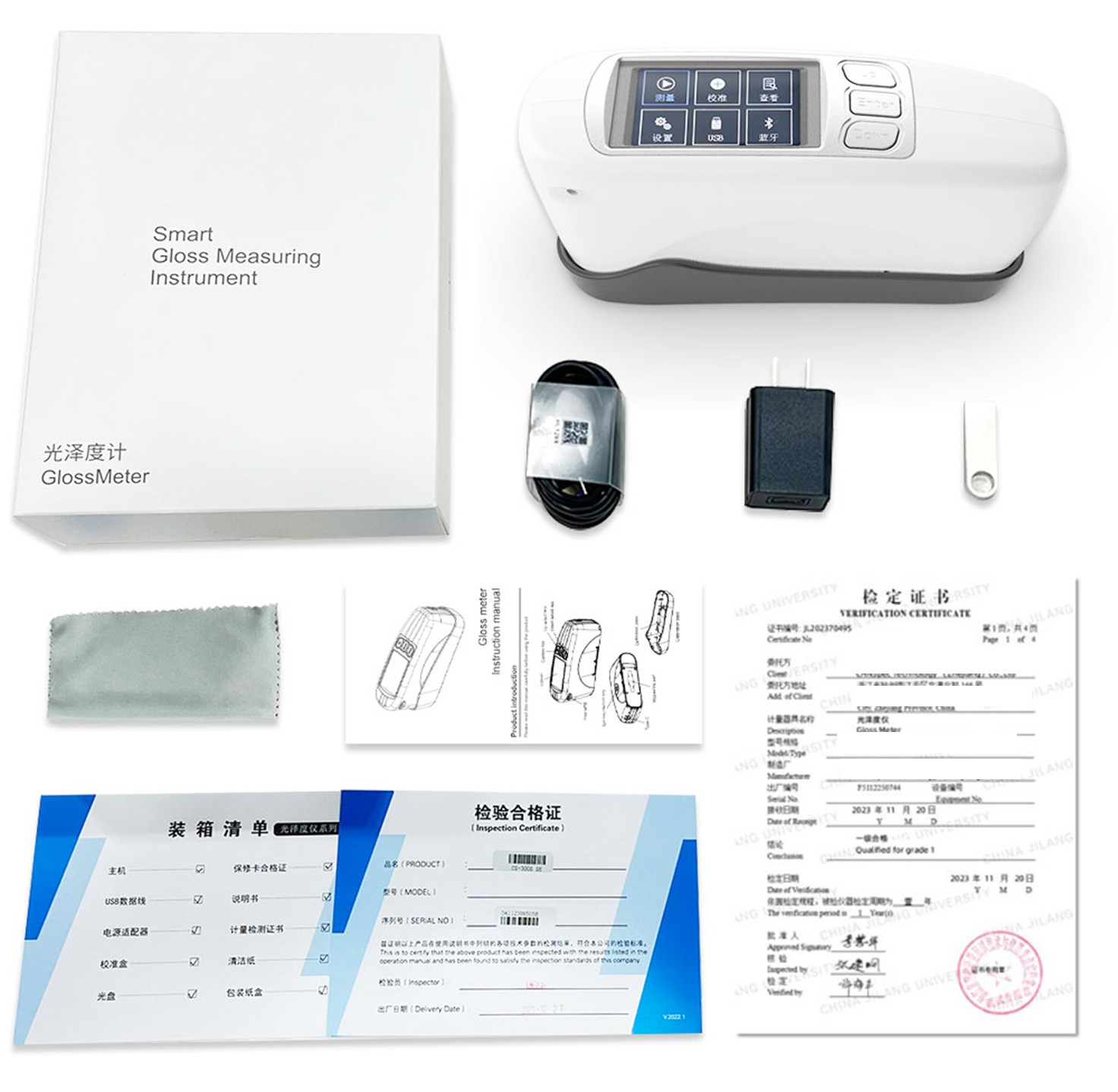

5V/2A charging head, data cable,   manual, USB flash drive (upper computer software), calibration standard   board, third-party calibration certificate

Purpose

Paint and ink, coatings,   electroplating, plastic electronics, hardware and other fields

※ Measure the standard deviation 30 times continuously, andevaluate it with absolute value when the measurement value is less than 100GU;When the measured value is greater than 100GU, evaluate it as a percentage

※※ Before the instrument leaves the factory, the measurementdata from the color spectrum standard laboratory
