From Traditional Visual Polarimeters to Fully Automated, High-Speed ​​Polarimeters: The Evolution of Laboratory Polarimetric Analysis

In pharmaceutical, food, and fine chemical laboratories, polarimetric analysis is a standard method for characterizing chiral substances. Traditional visual polarimeters rely on the operator to manually determine the balance point of light and dark fields to obtain a reading—a process that is not only labor-intensive but also prone to data discrepancies stemming from human judgment. Furthermore, in scenarios involving the testing of large batches of samples, manual data recording fails to meet modern laboratory requirements for data retention and traceability. With advancements in optical sensing and embedded control systems, fully automated, high-speed polarimeters are increasingly being adopted in quality control and research laboratories, offering a new approach to polarimetric measurements.

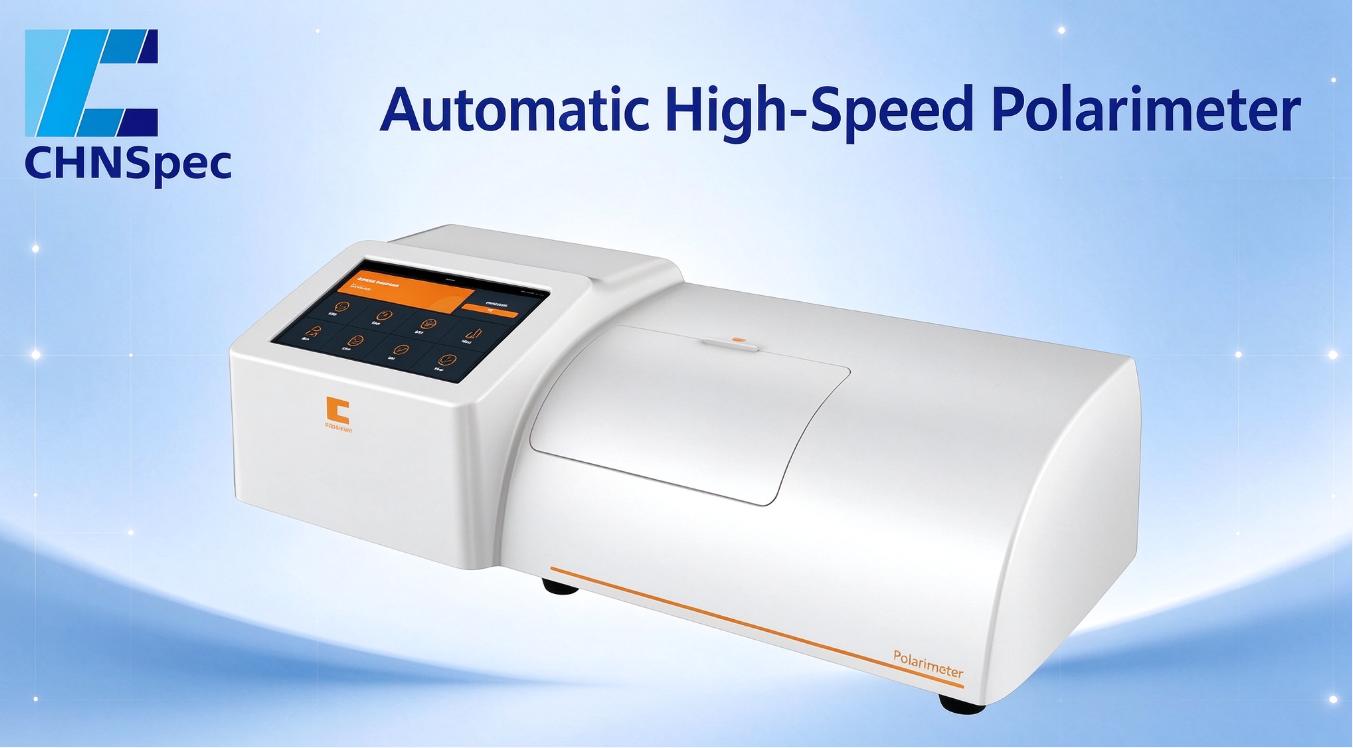

The DS-P900T series of fully automated, high-speed polarimeters from CHNSpec is designed for applications in the pharmaceutical, chemical, food, sugar, and scientific research sectors. Utilizing an LED light source paired with a high-precision interference filter, the instrument produces a 589nm sodium D-line spectrum—the specific wavelength mandated by pharmacopeia standards for polarimetric analysis. Unlike traditional sodium-lamp-based systems, which require long warm-up periods and suffer from rapid light-source degradation, this LED-based solution eliminates the need for extensive warm-up, offers superior operational stability, and reduces the burden of routine maintenance.

The device features multi-point automatic calibration and supports various measurement modes, including optical rotation, specific rotation, concentration, sugar content (Brix), and user-defined formulas. It achieves a response speed of 8° per second across its full measurement range, enabling six repeated measurements in an average of 26 seconds. For quality control (QC) laboratories that process large volumes of samples, these repeated measurements allow staff to assess the stability of the testing process and shorten the overall turnaround time for each batch.

Regarding human-machine interaction, the instrument is equipped with a 10.1-inch IPS capacitive touchscreen and an embedded operating system. Its large-capacity local storage can accommodate up to 1,500 measurement methods; specific parameters for different types of tests can be saved in advance and recalled instantly when switching between samples, thereby eliminating the need for repetitive parameter configuration. The instrument is equipped with various communication interfaces and supports integration with Laboratory Information Management Systems (LIMS), allowing for the synchronization of test data and alignment with the digital management workflows of modern laboratories.

When selecting a polarimeter, many laboratories consider not only basic testing capabilities but also data compliance management. Mid-range and high-end models feature tiered user management, support electronic signatures and data traceability, and offer optional audit trail software. This software records details regarding instrument operation, parameter adjustments, and sample testing, facilitating future reviews and audits. The instrument accommodates both standard and temperature-controlled sample tubes; for temperature-sensitive samples, a temperature-control module can be used to maintain the required testing temperature, thereby minimizing the impact of temperature fluctuations on polarimetric measurement results.

The evolution of these instruments goes beyond simply increasing testing speed; it balances measurement accuracy, operational efficiency, and data management. To address diverse requirements—ranging from basic screening in small laboratories to compliant quality control in pharmaceutical companies and research analysis in academic institutions—this series is available in entry-level, mid-range, and high-end versions. Users can select the model that best aligns with their specific testing needs and compliance requirements, ensuring the equipment effectively supports a wide variety of laboratory workflows.
