DS 526 Color Densitometer for Color Printing

Suitable for printing and packaging industries

Solve the color quantization problem of CMYK and spot colors

Provide quantitative operating guidance to printing press staff

一、Product features

Horizontal compression measurement, physical positioning observation window

The DS 526 Color Densitometer adopts a horizontal design with a low center of gravity, which can be stableMeasure the surface being measured. During the measurement process, you can follow the observation windowCheck the measurement position at all times to avoid measurement position errors.

Provide printing-specific measurement indicators to help users adjust colors efficiently

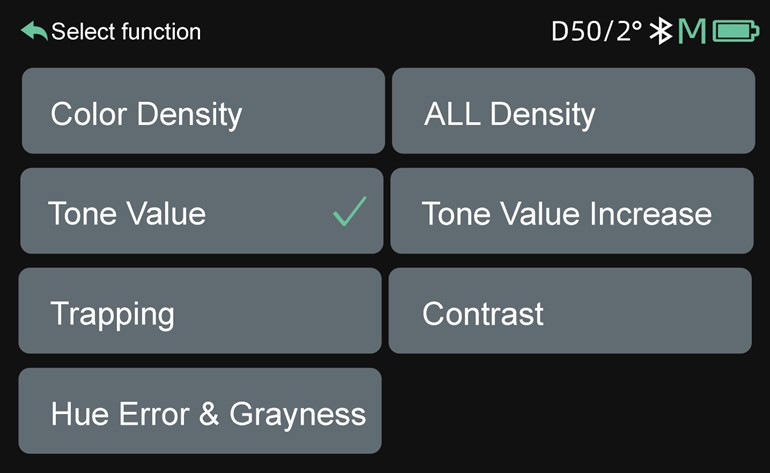

Color density measurement, dot area measurement, overprint rate measurement, printing contrast measurement, hue error and grayscale measurement.

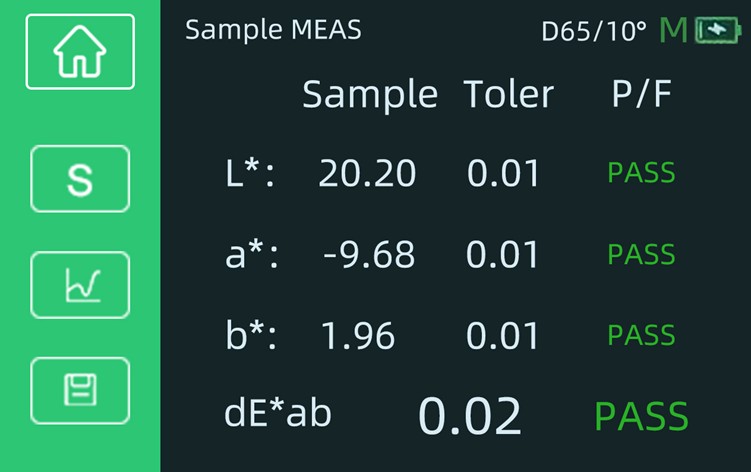

Ultra-high repeatability accuracy：dE*ab≤0.02

Repeatability accuracy is the most important indicator to describe the performance of a Color Densitometer.

The DS 526 Color Densitometer adopts high-precision nanometer spectroscopic devices,which enables the repeatabilityaccuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

More than 30 measurement parameters and nearly 40 evaluation light sources

DS 526 Color Densitometer provide spectral reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power,whiteness, yellowness and other 30+ measurementindicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries All color measurement metrics and light source types included.

Use the powerful PC-side color management system ColorExpert

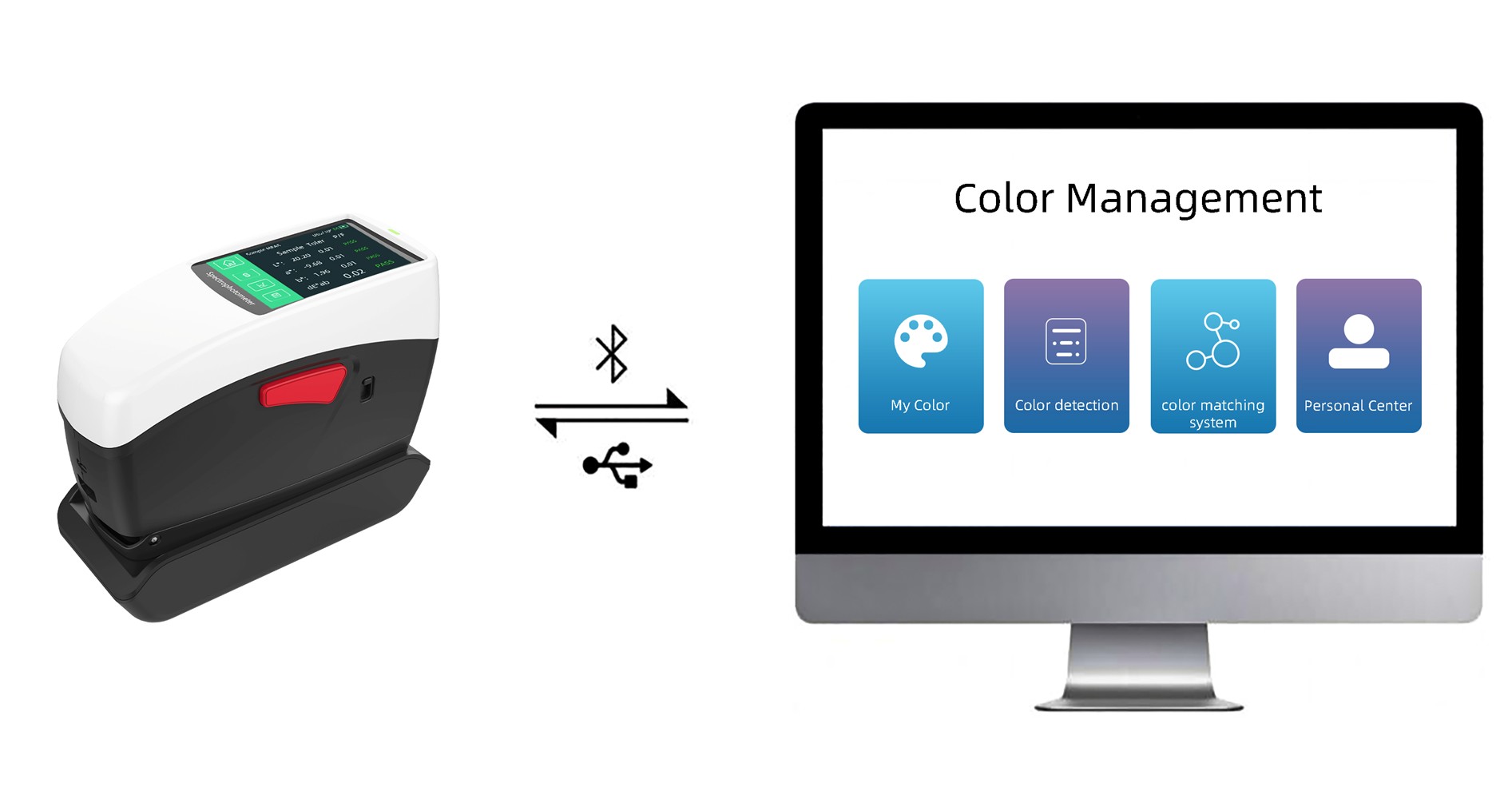

The DS 530 Color Densitometer comes with the Windows color management system ColorExpert, which can be connected to the DS 530 Color Densitometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

1.In the "My Colors" function module, users can collect or create new color libraries they need among hundreds of color libraries shared by other users. Electricity The brain software and mobile APP can share an account, aSuitable for printing and packaging industries Solve the colorquantization problem of CMYK and spot colors Provide quantitative operating guidance to printing press staffnd the color library data follows the account to achieve information synchronization between PC and mobile terminals.

The DS 530 Color Densitometer comes with the Windows color management system ColorExpert, which can be connected to the DS 530 Color Densitometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

2.In the "Color Detection" function module, users can calibrate, measure, and set up the spectrophotometer through computer software. Users can use the colors in the cloud database as standard samples to measure color differences, view spectra, color difference charts, standard sample data, and export the desired data test report.

3.In the "Color Matching System" function module, it can provide users with a more convenient and efficient color matching process.After the instrument measures the color of the sample, the system calculates the formula in the formula center and automatically corrects thecolor, finally achieving an accurate match. Suitable for computer automatic color matching applications in paints,coatings, printing, textiles and

other fields.

4.In the "Personal Center" function module, users can edit their personal information, search or delete connected instrument information, manage downstream users, and manage color libraries shared with downstream users.

二、Product parameters
