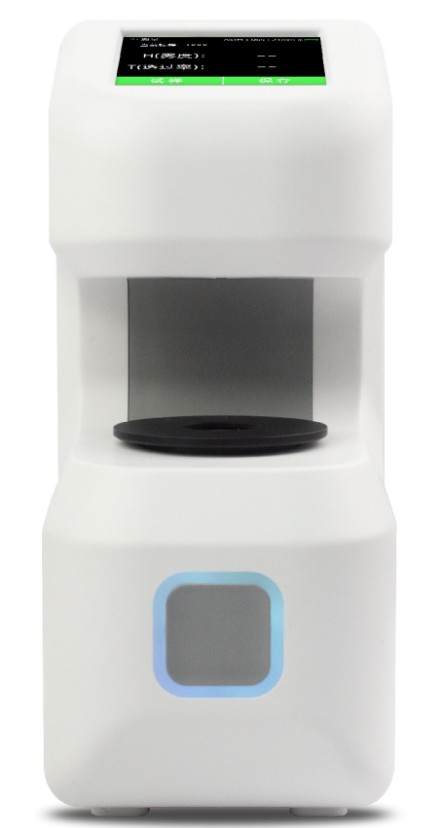

DH‑13 Portable Haze‑Transmittance Meter 0/d Triple‑Aperture High‑Precision for Multi‑Size Optical‑Samples

Part 1.Product Advantages

1.The portable haze meter is with smaller size which is more convenientto be carried for testing haze and transmittance.

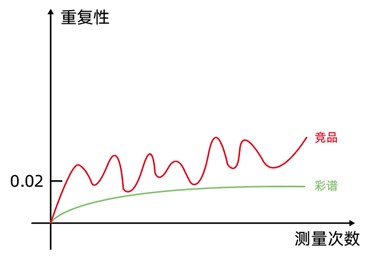

2.High precision with 0.01% resolution and high stability (repeatability ≤0.02%).

3.Dual guarantees for long-term stability

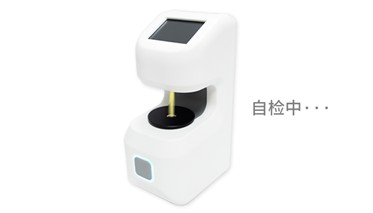

Regular self-check in standby mode.

Dual optical path design.

4.Supports connection to the mobile app "HazeMeter" for cloud data storage and account-synced measurements.

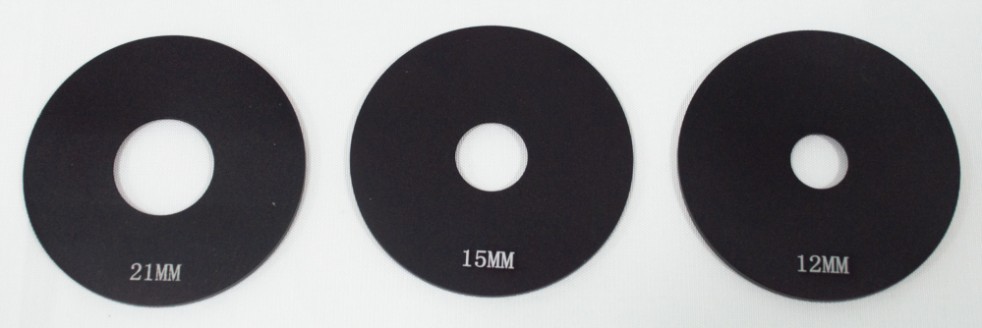

5.Three measurement apertures (21mm/15mm/12mm) for diverse sample sizes (custom sizes available).

6.Complies with testing standards: GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, and JIS K 7136.

7.Measures haze and transmittance under three standard light sources: CIE-A, CIE-C, and CIE-D65.

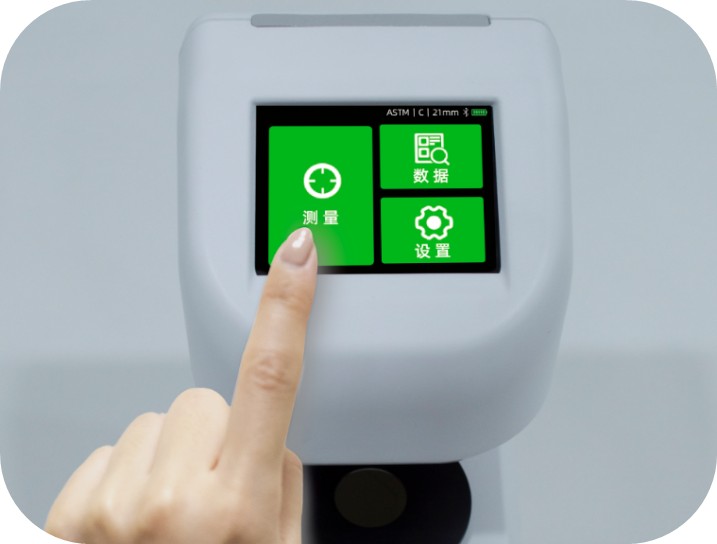

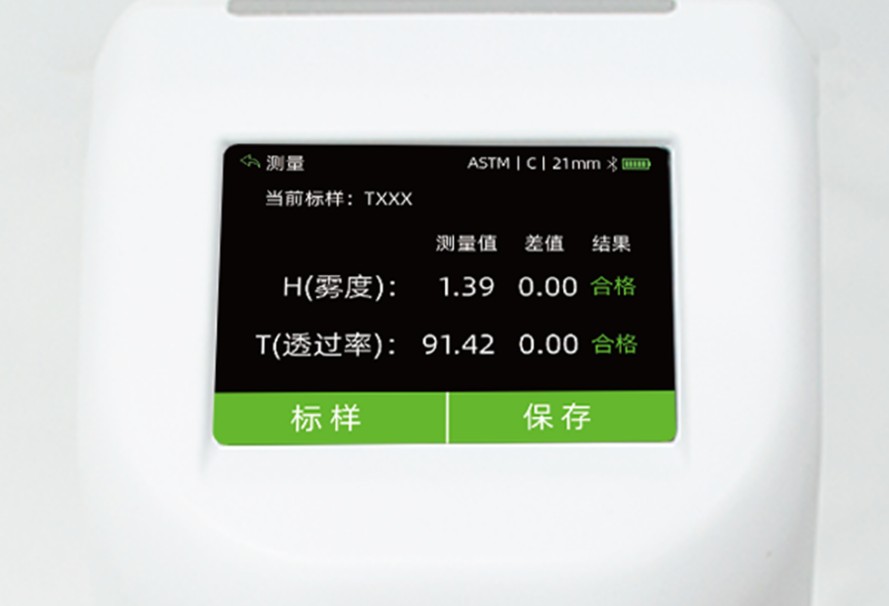

8.Features a 2.8-inch touchscreen for intuitive operation.

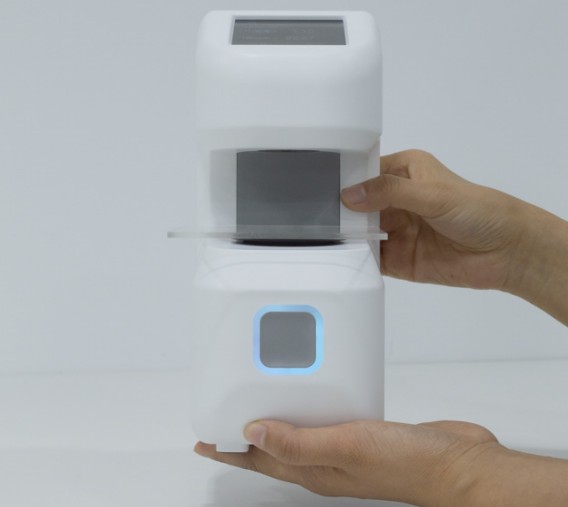

9.Lithium battery powered for convenient mobile testing of large or hard-to-sample materials (e.g., large glass panels).

Part2. Packing List

Part 3. Technical Data
