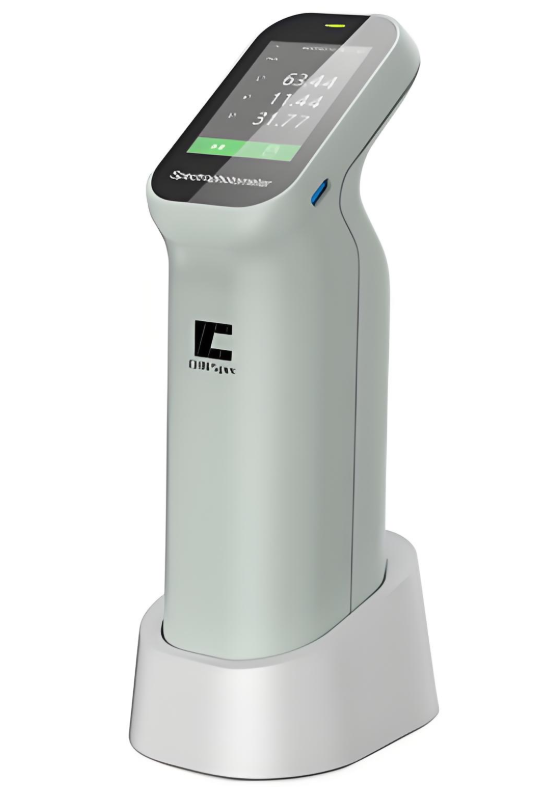

CS‑411 Economical Spectral Colorimeter D/8 SCI SCE Small‑Aperture for Tiny‑Sample Color‑Difference Test

1/1

CS‑411 Economical Spectral Colorimeter D/8 SCI SCE Small‑Aperture for Tiny‑Sample Color‑Difference Test

WeChat

copy Link

Facebook

The CHNSpec Technology CS-411 Economy Spectrophotometer delivers reliable color measurement for quality control. Featuring automatic calibration and 26 light sources, it supports over 30 parameters (whiteness, yellowness, etc.). With ±0.08 repeatability, 4mm/6mm apertures, and metrology certification, it ensures accuracy for small samples. Ideal for manufacturing, textiles, and plastics.

$571.00

DetailSupports

The Economy Version Spectrophotometer CS-411 is an economical colorimeter suitable for color difference evaluation of products. The instrument adopts an automatic calibration method, eliminating the need for cumbersome manual calibration. It offers over 30 measurement parameters and 26 standard light sources. With a 6mm aperture, the CS-411 model meets the measurement requirements for small-sized samples.

I. Instrument Features

1. Automatic calibration—takes care of itself

2. SCI/SCE

Can measure with gloss excluded, providing results more consistent with human visual perception

3. Extensive measurement parameters

Over 30 measurement metrics, including hiding power, whiteness, yellowness, etc.

4. Multiple light source conditions

26 light source evaluation indicators

5. Excellent repeatability and measurement stability—0.08

6. Guaranteed to pass metrology certification

II. Technical Parameters

Product Model	CS-411
Color	Pea Green
Measurement Geometry	D/8-SCI+SCE (Diffuse illumination, 8° directional reception, including specular component included and excluded)
Repeatability/Stability	Standard deviation
	Average ΔE*ab ≤ 0.05
	Maximum ΔE*ab ≤ 0.08
	(Measured 30 times at 5-second intervals after white calibration)
Inter-Instrument Agreement	ΔE*ab≤0.4
Display Accuracy	0.01
Measurement/Illumination Aperture	Φ4mm/Φ6mm
Measurement Metrics	Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color difference (ΔEab, ΔEcmc, ΔE94, ΔE00), Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Staining fastness, Color change fastness, Tint (ASTM E313-00), Color density CMYK (A, T, E, M), Metamerism index Milm, Munsell, Hiding power, Strength (dye strength, tinting strength)
Light Sources	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Color Matching Software	None
Illumination Source	LED
Measurement Viewing Method	Visual
Calibration	Intelligent automatic calibration
Software Support	Windows
Accuracy Guarantee	First-class metrology certification
Viewing Angle	2°，10°
Integrating Sphere Diameter	40mm
Compliance Standards	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Optical System	lntegrated optics
Sensor	CMOS sensor
Wavelength Interval	10nm
Wavelength Range	400-700nm
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Time	Approx. 1 second
Interface	USB
Display	IPS full-color screen, 2.4 inches
Battery Capacity	8,000 measurements per charge; 3.7V/3000mAh
Light Source Lifespan	10 years or 1 million measurements
Languages	Simplified Chinese, English
Storage Capacity	100 records
