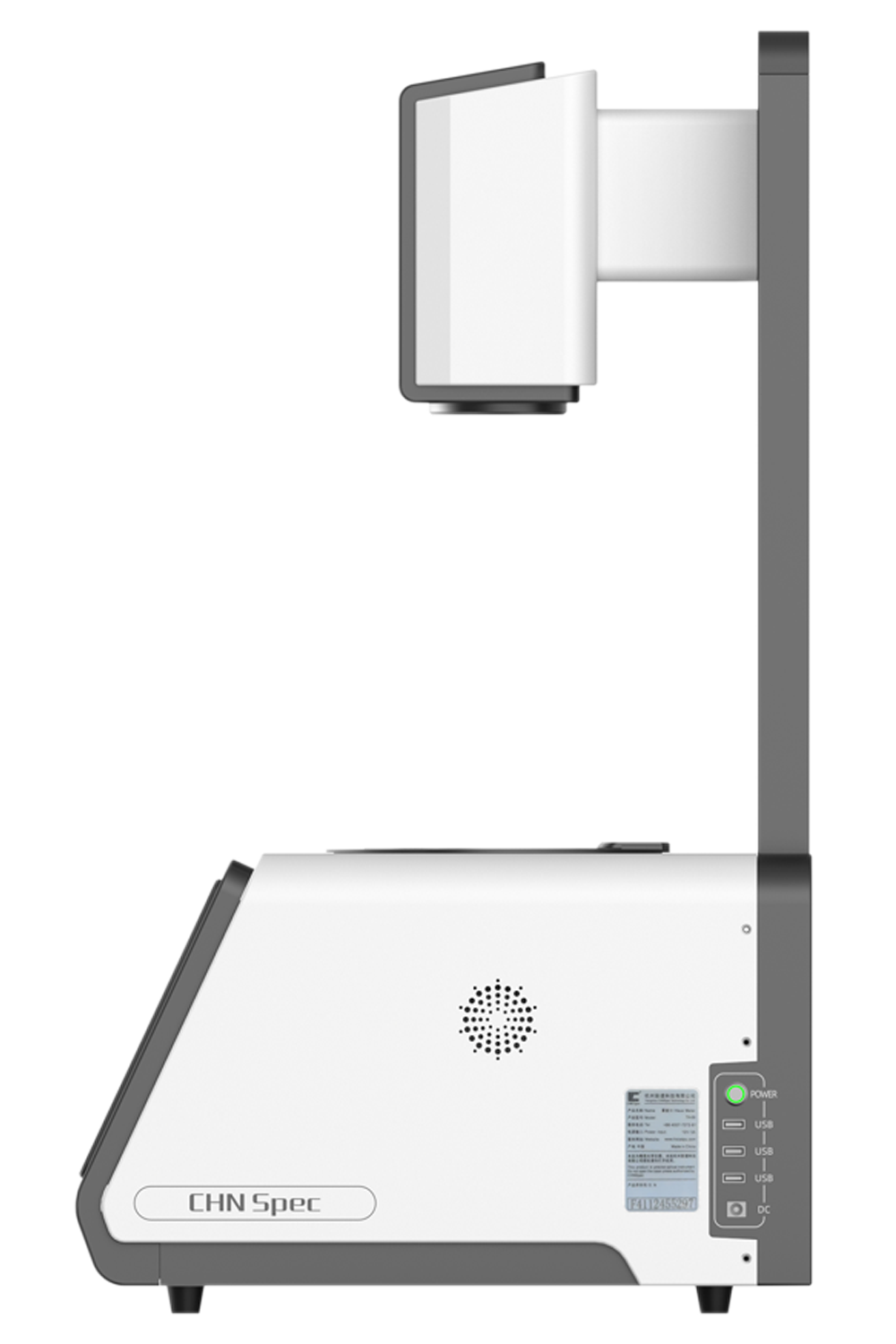

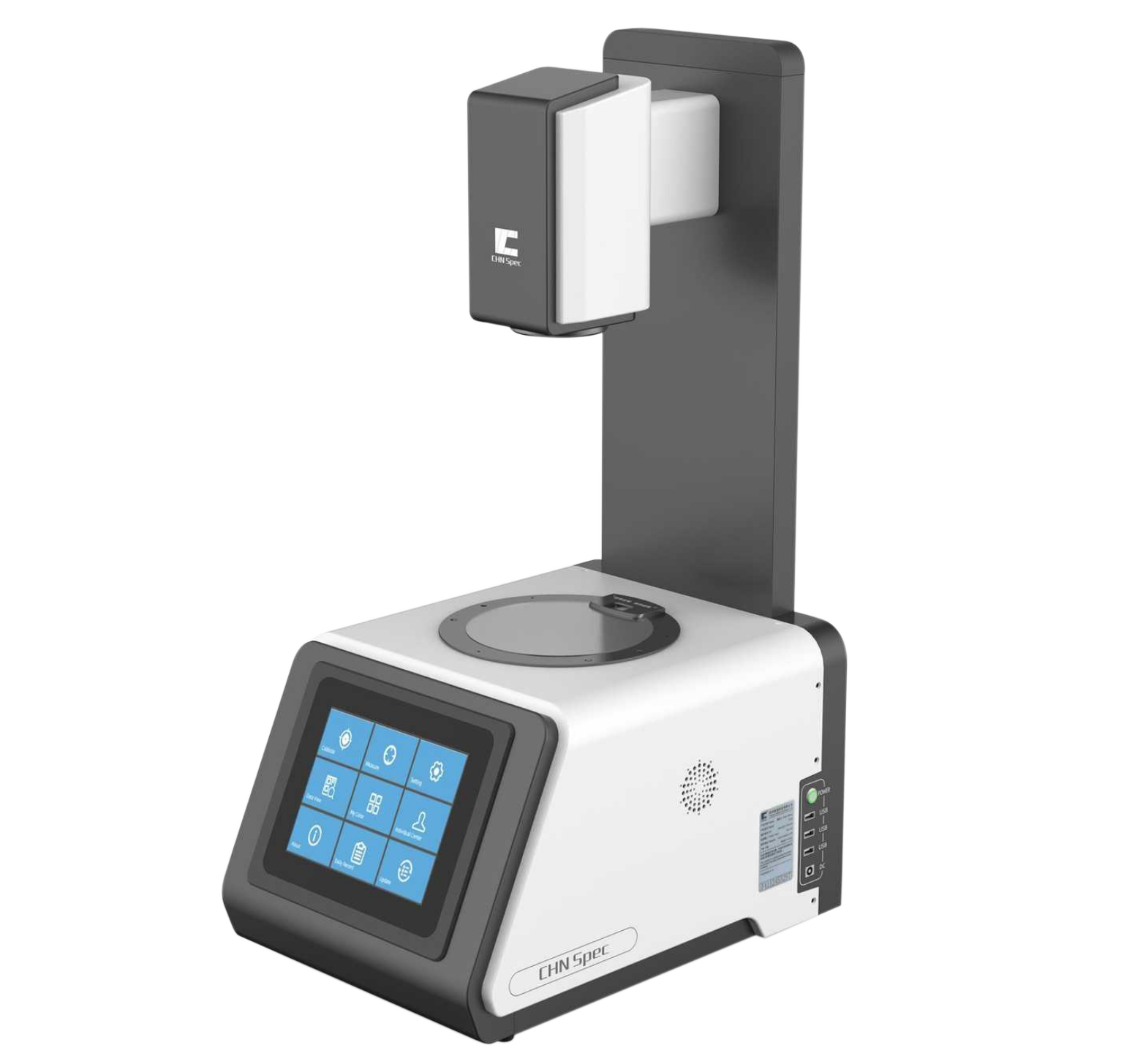

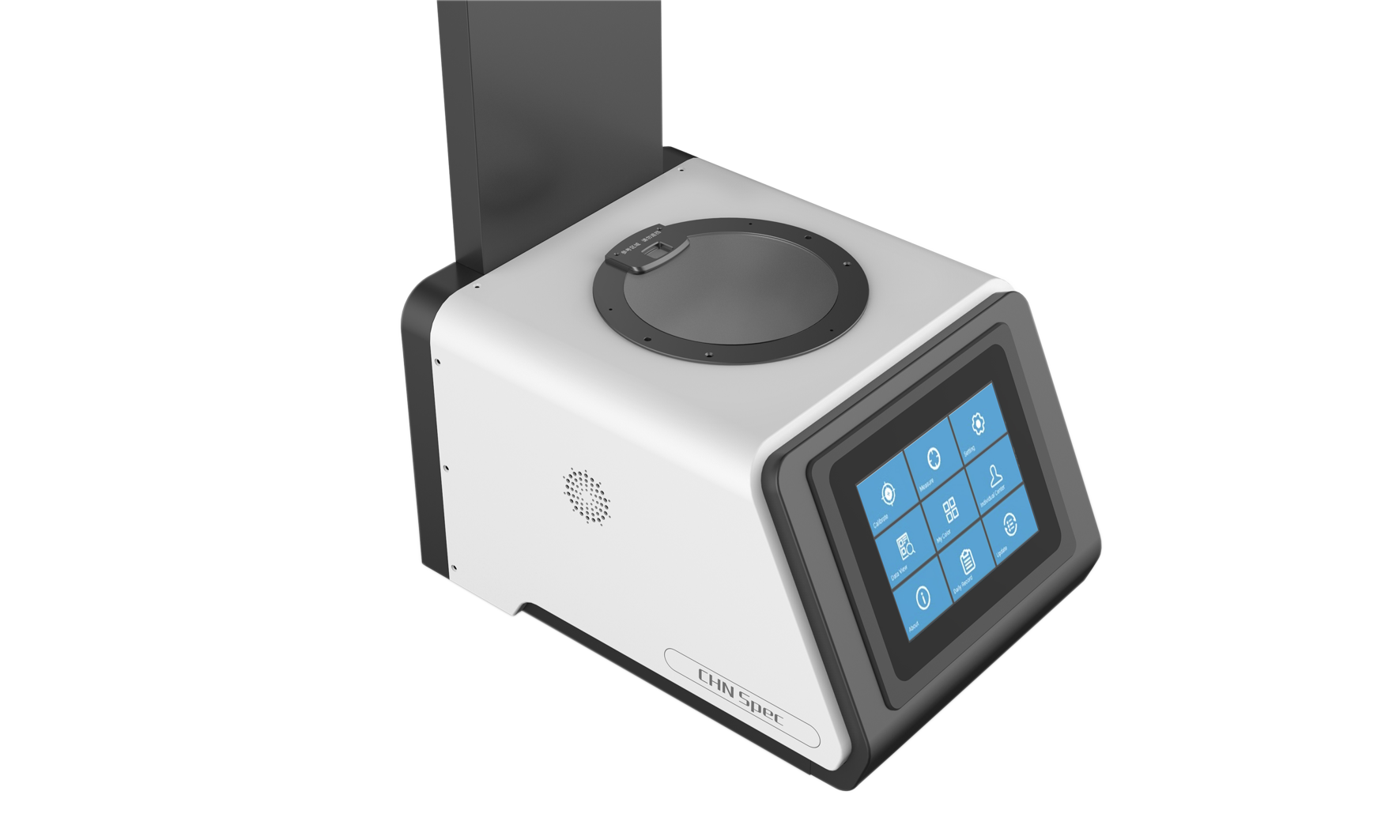

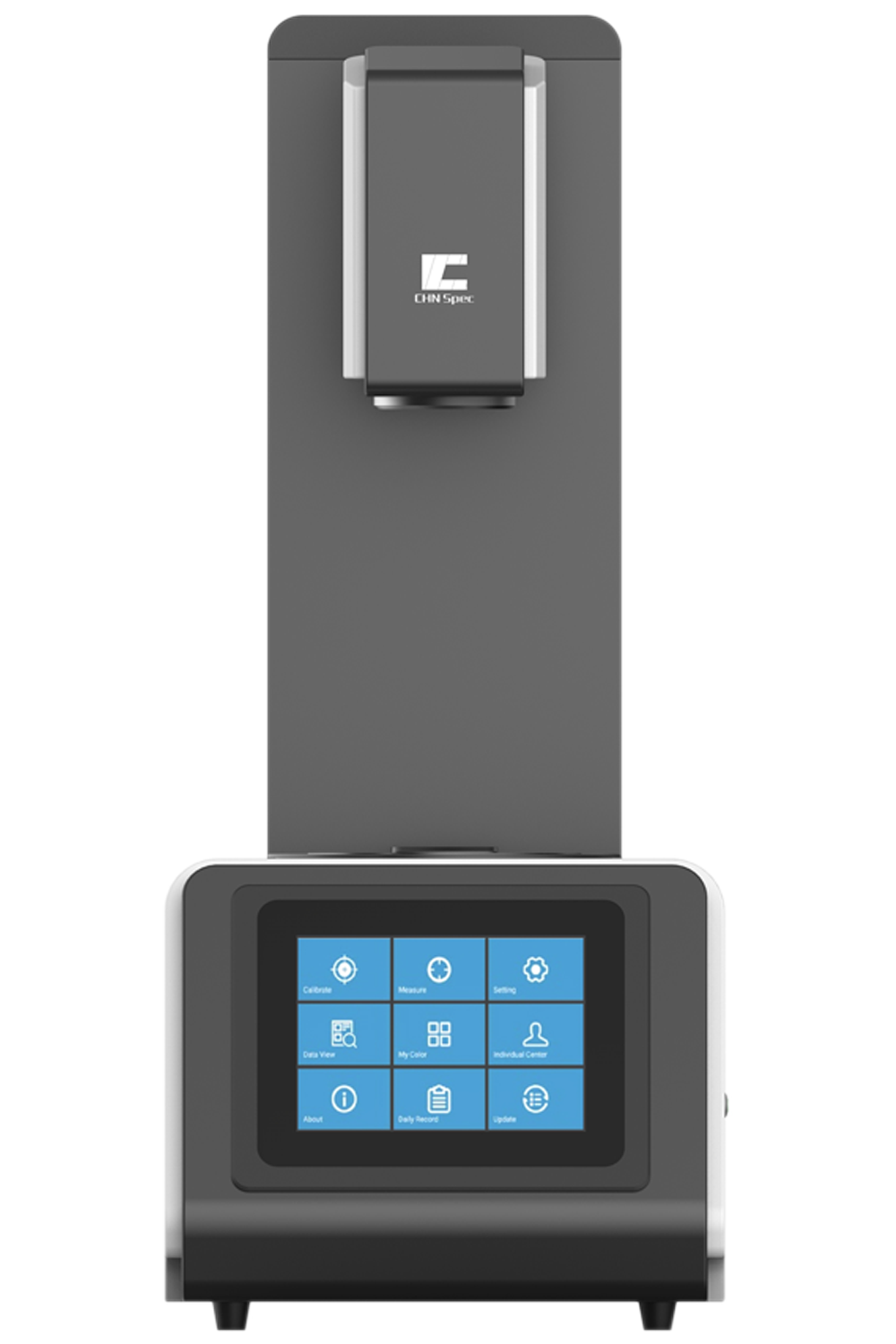

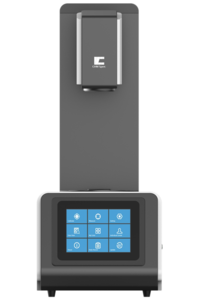

TH‑200 Transmittance Imaging Analyzer for Plastic Laser‑Welding Full‑Field QC Inspection
simultaneous detection of multiple points to ensure comprehensive detection.
Flexible settings: The detection area can be freely defined and the transmittance range can be set
to meet different needs.
Automatic judgment: Automatically extract the transmittance and welding quality of the inspection
area, and accurately judge whether it is OK or NG.
Multi-point testing: Suitable for multi-point testing of samples to effectively avoid missed tests.
Easy to operate: The test operation is simple and convenient, even non-professionals can easily
get started.
Extremely fast: complete measurement within one second, improving work efficiency.
Technical Parameters
Product Features
Full-screen scanning: All-round scanning of the transmittance of welded plastic parts, multi-point simultaneous detection to ensure comprehensive detection.
Flexible settings: You can freely define the detection area and set the range of light transmission rate to meet different needs.
Automatic judgment: Automatically extracts the light transmittance and welding quality of the inspection area, and accurately judges OK or NG.
Multi-point testing: Suitable for multi-point testing of samples, effectively avoiding leakage.
Convenient operation: the test operation is simple and convenient, even non-
professionals can easily get started.
Extremely fast: Measurement is completed within one second, improving work efficiency.
Technical Parameters
Model | TH-200 |
Wavelength | 850nm, 905nm, 915nm, 940nm, 980nm, any wavelength can be selected |
Transmittance range | 0-100% |
Single measurement time | ＜0.9 seconds |
Measurement repeatability | 0.5% |
Measurement accuracy | 0.01% |
Maximum measurement size | 150*150mm |
Maximum detection distance | 250mm |
Calibration method | Automatic calibration |
Measurable parameters | Multi-point transmittance, maximum value, minimum value, average value, transmittance change curve over time, welding quality inspection |
Measurement method | Vertical irradiation, multi-point comprehensive simultaneous detection |
Computer | Built-in industrial tablet computer |
Operating system | Win10 |
Optional accessories | Calibration certificate |
Application Areas
|
|
|
|
Car taillight 3D plastic | Plastic laser welding applications | Application of laser welding | Laser welding of plastics |
|
|
|
|
Laser welding of plastic | Laser welding of plastic | Laser welding of plastic housing | Laser welding of plastic |
