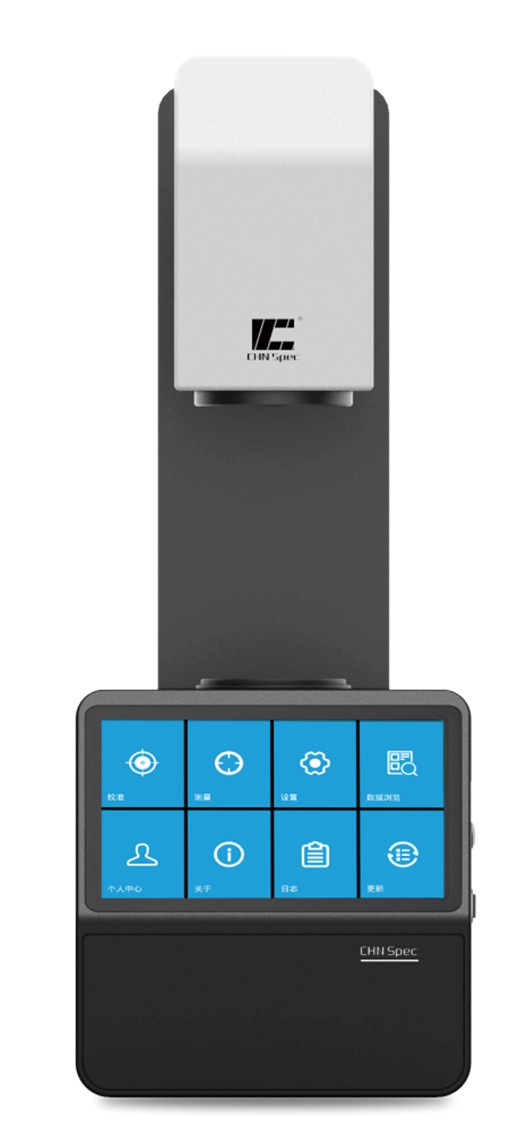

TH‑110 Benchtop Haze‑Transmittance Meter Dual‑Aperture Android Touch‑Screen for Lab QC
  • TH‑110 Benchtop Haze‑Transmittance Meter Dual‑Aperture Android Touch‑Screen for Lab QC
    • 1/1
  • TH‑110 Benchtop Haze‑Transmittance Meter Dual‑Aperture Android Touch‑Screen for Lab QC

TH‑110 Benchtop Haze‑Transmittance Meter Dual‑Aperture Android Touch‑Screen for Lab QC

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
CHNSpec TH-110 Haze Meter features a redesigned optical platform with a 7-inch HD capacitive touchscreen, providing precise measurements of haze, total transmittance, and scattered transmittance. Compliant with ASTM D1003/ISO 13468 standards, it offers auto-calibration and smart diagnostics. Ideal for quality control and R&D in plastics, glass, optical film industries.
$0.00
DetailSupports

Part 1. InstrumentAdvantages

1).It conforms to bothASTM and ISO internationalstandards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Instrumentis with a calibration certification from a third party laboratory.

3). No needto do warm-up, after instrument is calibrated, it can be used. And measurementtime is only 1.5seconds.

4). Threekinds of illuminants A,Cand D65 for haze and total transmittance measurement.

5). 21mm testaperture.

6). Openmeasurement area, no limit on sample size.

7). It canrealize both horizontal and vertical measurement to measure different kinds ofmaterials such assheets, film, liquid, etc.

8). Itadopts LED light source whose lifetime can reach 10 years.

Part2. Technical Data

Model

Haze Meter TH-110

Character

ASTM D1003/D1044 and ISO13468/ISO14782   standard for haze measurement and light transmittance measurement.

Open measurement area and samples can be   tested vertically and horizontally. Application: glass, plastic, film,   display screen, packaging and other industries.

Illuminants

D65,A,C

Standards

ASTM D1003/D1044, ISO13468/ISO14782,   GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS   K7361, JIS K 7136

Test Parameter

ASTM and ISO (HAZE),Transmittance (T)

Test Apertures

21mm and 7mm

Instrument Screen

7 inches touch screen with Android   Software

Haze Repeatability

Φ21mm aperture，Standard Deviation: within 0.05(when a haze   standard with value 40 is measured 30 times at 5-second interval after   calibration)

Transmittance Repeatability

≤0.1 unit

Geometry

Transmittance 0/D (0 degree   illumination, diffused receiving)

Integrating Sphere Size

Φ154mm

Light Source

Full spectrum LED light source

Test Range

0-100%

Haze Resolution

0.01 unit

Transmittance Resolution

0.01 unit

Sample Size

Open space, no size limit

Data Storage

Mass Storage, unlimited

Interface

USB

Power Supply

DC12V (110-240V)

Working Temperature

+10 – 40 °C (+50 – 104 °F)

Storage Temperature

0 – 50 °C (+32 – 122 °F)

Size

L x W x H:310mmX215mmX540mm
